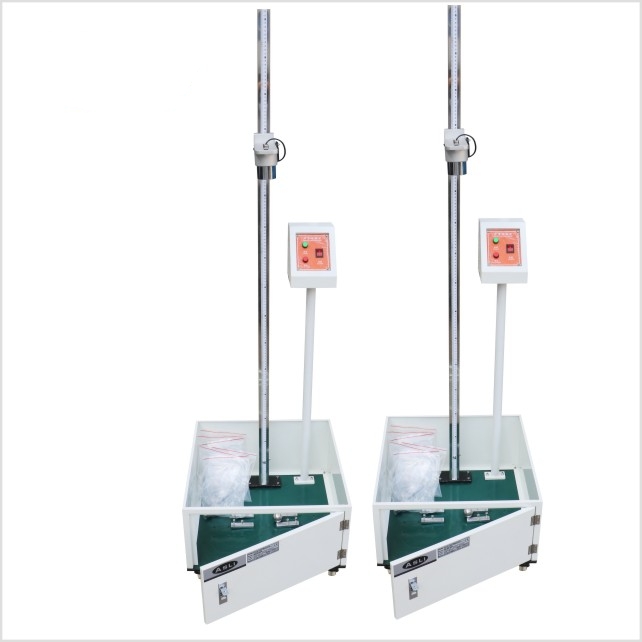

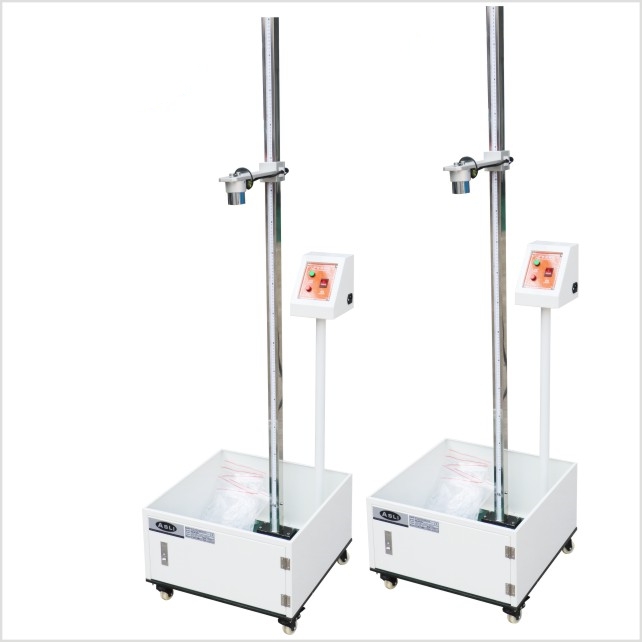

Ball Drop Test Machine for Impact Resistance and Packaging Durability

APPLICATION

Designed to evaluate impact resistance at specified heights with specified steel balls. Typical materials and products include:

Ceramics, acrylic, glass, plastics

Packaging components and protective structures

Consumer and industrial product surfaces requiring drop/impact verification

Standards & Methods

IEC 60950-1 (ball drop impact method for IT equipment safety)

JIS K 5400 (steel ball specification for impact tests)

SHARE AS
REQUEST A QUOTE
  • Adjustable Drop Height: 0–2 m with height scale for quick setting and verification.
  • Electromagnetic Release: Fast, consistent, and repeatable ball release; no mechanical bounce.
  • Free-Fall Method: True vertical drop to the target point.
  • Quick Change Balls: Multiple diameters/weights supplied to match test requirements.
  • Safety & Alignment: Safety fence and infrared pointer for positioning (where configured).
  • Simple Operation: One-button absorb/release; clear status indication.

Ball Drop Test Machine Parameter:

ModelAS-DB-200
Max. Height0 ~ 2 m
Drop MethodFree falling
Weight and diameter
of Steel Ball
One set steel ball:
112g(Φ30mm), 198g(Φ36mm), 225g(Φ38mm), 357g(Φ41mm), 533g(Φ51mm), 1042g(Φ64mm), 2280g(Φ82mm)
Steel ball standard: JIS K-5400
DimensionApprox. W530*H2040*D530 mm
Packed DimensionApprox. W640*H2210*D640 mm
Weight100 Kg
PowerAC220V, 1 phase 3 lines
RailAccording to customer's requirement
