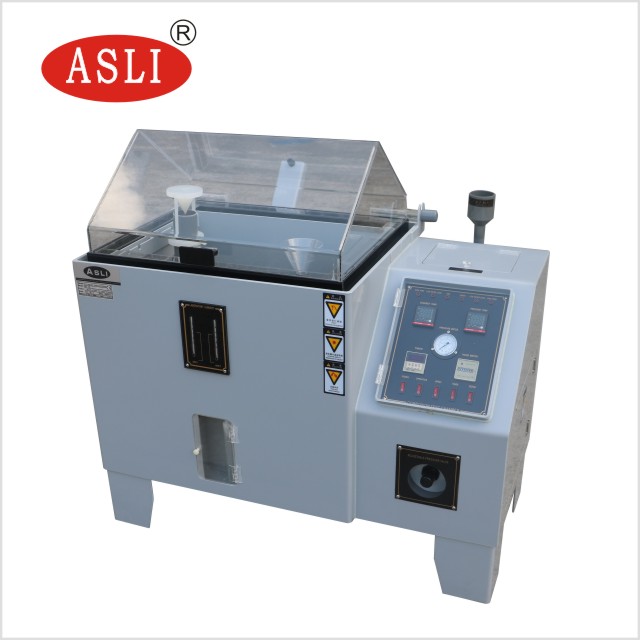

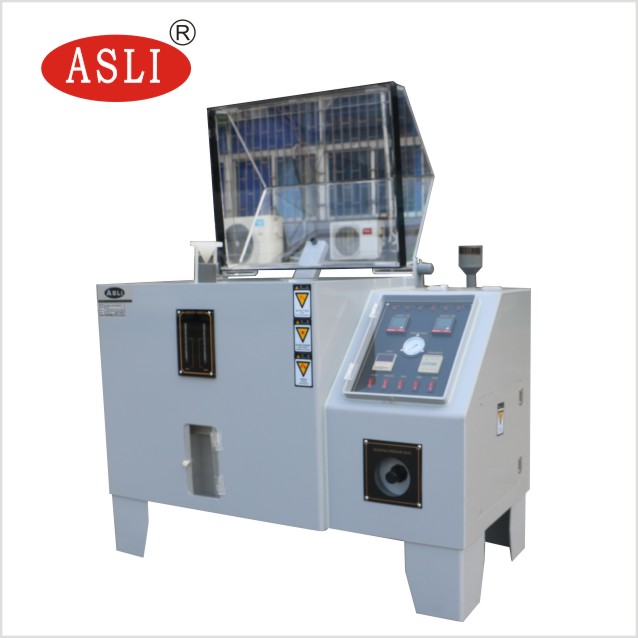

The SH-60 Salt Spray Test Chamber is a compact, high-performance corrosion testing solution ideal for laboratories with space constraints. Designed for NSS (Neutral Salt Spray) and ASS (Acetic Acid Salt Spray) tests, it complies with international standards like ISO 9227 and ASTM G85. This chamber is commonly used in industries such as automotive, aerospace, and electronics to evaluate the corrosion resistance of coatings, paints, and metal surfaces.
Its applications extend to:
Model | SH-60 | SH-90 | SH-120 | SH-160 | SH-200 |
Internal Dimension WxHxD (mm) | 600x450x400 | 900x600x500 | 1200x800x500 | 1600x800x500 | 2000x1000x500 |
External Dimension WxHxD (mm) | 1100x600x1200 | 1400x950x1200 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 |
Lab Temperature | Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃ | ||||
Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃ | ||||
Lab Capacity(L) | 110 | 270 | 500 | 800 | 1500 |
Saline Capacity(L) | 15 | 25 | 40 | 40 | 40 |
Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||
Compressed Air Pressure(Kgf) | 1.0~6.0 | ||||
Spray Volume | 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) | ||||
Spray Form | Continuous Spraying or Programmable Spraying | ||||
Power | AC220V 1∮ 3 lines15A | ||||
Weight(Kg) | 65 | 80 | 120 | 160 | 200 |
