Compact Environmental Chambers for Small-Scale R&D Labs

In research and product validation, not every lab requires a full-size walk-in test room. Increasingly, R&D engineers are adopting compact environmental chambers that deliver precise temperature and humidity control without occupying excessive floor space. These benchtop or vertical units now replicate the same accuracy as larger systems—ideal for laboratories working on small components, limited budgets, or fast-iteration testing cycles.

The Shift Toward Scalable and Portable Testing Solutions

Modern R&D is moving away from centralized testing facilities. Pharmaceutical, medical device, and electronics manufacturers now prefer distributed lab setups, where prototype evaluation can happen closer to the design stage. This trend drives the need for modular, portable chambers—systems that plug into standard power, require minimal installation, and still meet international standards like IEC 60068, ICH Q1A, and ASTM D4332.

Compact chambers fill this gap. They enable engineers to perform accelerated aging, stability, and reliability tests without waiting for access to large shared facilities. For start-ups and research institutes, this flexibility shortens time-to-market while maintaining compliance with global testing requirements.

Core Advantages of Compact Environmental Chambers

1. Space Efficiency – Designed for benchtops or small floor areas, units typically range from 50 to 150 liters, suitable for labs in universities, hospitals, or manufacturing R&D centers.
2. Energy Optimization – Lower power consumption compared with large-scale systems, yet capable of precise thermal cycling within ±0.5 °C and humidity accuracy of ±2.5 % RH.
3. Ease of Operation – Plug-and-play installation, intuitive touchscreen controls, and data logging via USB or Ethernet.
4. Cost Effectiveness – Reduced purchase and maintenance costs make compact chambers ideal for routine sample screening or small-batch reliability checks.

These factors explain why many labs now integrate compact models as part of their core testing infrastructure rather than outsourcing small-scale evaluations.

Applications Across Key Industries

Pharmaceutical Stability Testing
In early-stage drug formulation, compact temperature and humidity test chambers help determine how compounds degrade under different climatic conditions. Laboratories can simulate 25 °C / 60 % RH or 40 °C / 75 % RH stability zones defined by ICH Q1A(R2).

Electronics Reliability Evaluation
Benchtop chambers simulate thermal stress cycles for PCBs, connectors, and sensors. Consistent temperature uniformity ensures that micro-components experience identical conditions—critical for lifetime estimation and solder-joint fatigue analysis.

Automotive Materials Research
Small-sample tests of polymer, adhesive, or coating durability under humidity and temperature cycling can be conducted before full-scale validation. This approach reduces waste and accelerates material screening.

Design Innovations Supporting Precision and Reliability

Compact does not mean simplified. High-performance systems integrate features once reserved for large chambers:

• PID Temperature Control & Dynamic Airflow Design – Ensures uniform distribution and rapid recovery after door openings.
• Stainless-Steel Interior & Double-Layer Insulation – Prevents condensation and maintains consistent internal conditions.
• Programmable Controllers & Remote Monitoring – Allow users to set complex multi-step thermal profiles and monitor progress through connected software.

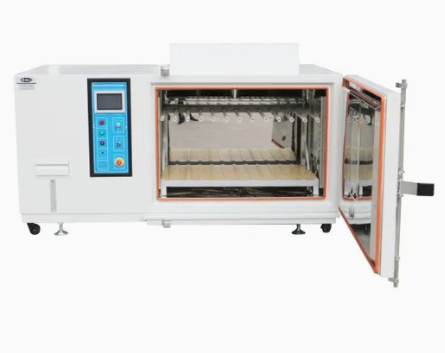

For instance, ASLI’s Benchtop Temperature and Humidity Chamber supports precise thermal cycling and long-term soak testing, fully meeting international reliability requirements while remaining easy to relocate within a lab.

Compliance and Testing Standards

Laboratories using compact chambers typically reference these standards:

• IEC 60068-2-1 / 2-2 / 2-30 – Environmental testing for temperature, humidity, and cyclic conditions.
• ASTM D4332 – Conditioning for testing packaging materials under controlled temperature and humidity.
• ICH Q1A(R2) – Stability testing of new drug substances and products.

Meeting these ensures data reproducibility and regulatory acceptance, whether the tests are for internal validation or third-party certification.

Integration into Modern Laboratory Workflows

Compact chambers seamlessly fit into R&D processes:

• Parallel Testing: Run multiple chambers for different temperature-humidity profiles simultaneously.
• Fast Iteration: Developers can test and adjust designs daily without waiting for centralized lab slots.
• Data-Driven Reliability: Built-in sensors and digital logging enable consistent comparison across test runs.

As data collection becomes critical for predictive maintenance and digital-twin modeling, even small-scale chambers now play a role in larger reliability ecosystems.

Choosing the Right Chamber for Your Lab

When selecting a compact environmental chamber, engineers should evaluate:

1. Temperature / Humidity Range: Confirm it matches your material or product requirements.
2. Uniformity and Stability: Ensure the chamber maintains ±1 °C uniformity and ±2 % RH consistency.
3. Controller Functionality: Multi-step programming, safety alarms, and communication interfaces.
4. Support and Calibration: Availability of local service, spare parts, and ISO 17025 traceable calibration.

ASLI’s laboratory-grade compact chambers are designed with these criteria in mind, providing dependable performance and flexible customization options for various industries.

Compact environmental chambers represent the next step in test lab evolution—balancing precision, efficiency, and flexibility. As product development cycles shorten and laboratory spaces become more constrained, these systems empower engineers to conduct high-quality temperature and humidity testing anywhere, anytime.

For small-scale R&D teams, the combination of compact size, accurate control, and standard compliance makes benchtop environmental chambers an indispensable tool for accelerating innovation and ensuring long-term product reliability.
