Over the last decade, electric vehicle (EV) battery safety evaluation has been dominated by one phrase: thermal runaway. Most certification procedures—such as UN38.3 Transport Testing, IEC 62660-2 Abuse Tests, and sections of UNECE R100—explicitly require demonstrating that a lithium-ion cell can withstand internal short circuit, nail penetration, and external heating without leading to uncontrolled fire or explosion. However, as global EV deployment scales into tens of millions of vehicles and next-generation chemistries enter the market, the safety conversation is shifting. Engineers are no longer only concerned about whether a cell ignites. The industry now wants to know how a battery degrades, how failure begins at the microstructural level, and how abuse accelerates long-term instability rather than just triggering catastrophic events.
Recent statistical data from major regulatory agencies show that field failures are increasingly associated with progressive degradation rather than single catastrophic incidents. This includes separator shrinkage over repeated cycling, lithium plating during cold charging, and progressive gas evolution in pouch cells. Thermal runaway is a critical failure mode, but it is often the final stage in a long chain of mechanical, thermal, and electrochemical events. In response, modern battery abuse testing is expanding to combine multiple stress factors simultaneously, creating test protocols that replicate real-world use — not just extreme accident scenarios.
UN38.3 remains the baseline for transport safety, but it primarily evaluates survivability during shipping. IEC 62660-2 now emphasizes mechanical shock, crush, forced discharge and drop testing, with detailed pass/fail criteria based on internal pressure rise and voltage response. Draft amendments to GB/T 31485 in China further integrate aging conditions before abuse exposure, acknowledging that cells with 20–30% capacity fade exhibit different failure behavior. This shift in standards demonstrates a strategic move: the industry is transitioning from “prove it doesn’t explode today” to “prove it won’t degrade into a dangerous state over time.”
This change is also reflected in laboratory investment trends. Automotive OEMs are now specifying chambers capable of combined thermal cycling, humidity, vibration, and electrical overstress, signaling that abuse testing is becoming a multi-dimensional validation process rather than an isolated safety check. Thermal runaway is still critical, but it is no longer the endpoint—it is now considered a symptom of deeper reliability issues.
Historically, battery abuse tests were conducted in isolation. A cell was heated until it failed, crushed until it shorted, or overcharged until decomposition occurred. Each test produced a pass/fail result. But growing evidence from post-incident investigations shows that real-world failures rarely originate from a single extreme event. Instead, they emerge from interacting stress factors developing over time.

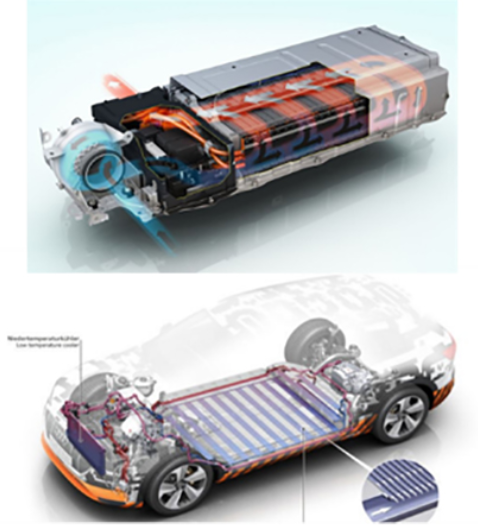

Modern EV battery designs integrate thermal management systems, mechanical housings, active monitoring electronics, and cell interconnections. These assemblies are exposed simultaneously to vehicle vibration, daily fast-charging cycles, environmental temperature fluctuations, coolant leakage risk, and user charging behavior. As a result, battery abuse testing has shifted to multi-factor stress models, combining thermal, electrical, and mechanical loads in a single test cycle.
2.1 Thermal Cycling with Mechanical Vibration

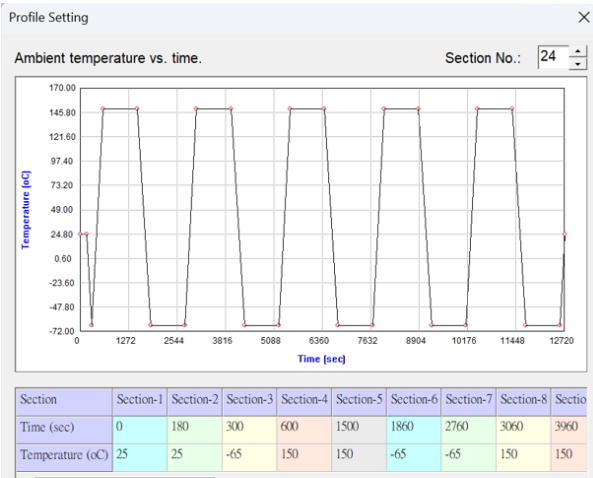

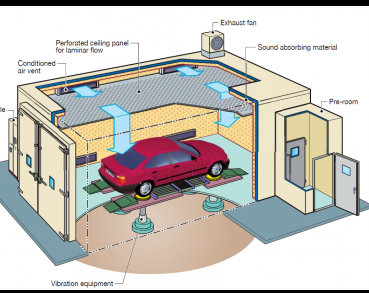

Studies conducted under IEC 62660 and ISO 12405 guidelines show that vibration significantly accelerates separator wear and interfacial delamination when combined with temperature cycling. When cells are cycled between -20°C and +60°C inside a vibration test chamber, voltage fluctuation and impedance rise occur earlier compared to standalone temperature cycling. This interaction is now being integrated into advanced environmental test chambers equipped with electro-dynamic shakers, enabling precise synchronization between temperature profiles and acceleration spectra.
The purpose is no longer only to simulate catastrophic failure, but to quantify early deviation signals—such as impedance drift, gas evolution, and energy loss—which are fundamental indicators of long-term safety degradation. This is the core transition in EV battery abuse testing beyond thermal runaway: data is analyzed for predictive safety modeling, not just immediate hazard response.
2.2 Electrical Abuse Combined with Humidity and Corrosion Exposure
IEC 60068-2-78 and ISO 16750 outline humidity exposure protocols for electronic components. When applied to lithium-ion batteries, humidity accelerates electrolyte decomposition and corrosion of current collectors. Modern test procedures combine overcharge testing (e.g., 150% SOC at constant voltage) with 95% relative humidity exposure to mimic charging in coastal or monsoon climates. The result is not explosion, but progressive gas build-up and pouch swelling, critical signs of internal instability.
Regulators now consider these early indicators as part of abuse testing, requiring OEMs to document not only whether a battery catches fire, but how its performance changes before reaching a hazardous condition. This preventive approach represents a significant evolution in test methodology.
2.3 Forced Internal Short Circuit with Pre-Aging Conditions
Traditional internal short-circuit tests initiate failure in a fresh cell. But ongoing research, including data published under UL 9540A and SAE J2464, demonstrates that aged or calendar-degraded cells react much more severely to internal short circuits. Therefore, aging simulation is increasingly used before abuse activation. This includes 200 to 500 thermal cycles, depth-of-discharge cycling, or accelerated high-temperature storage at 60°C for several weeks.
These pre-aging conditions create microstructural fatigue, creating a realistic worst-case scenario. The objective is not simply to observe whether thermal runaway occurs, but to analyze how aging affects onset temperature, venting pressure, and exothermic behavior. This multi-stage abuse test architecture represents the next generation of safety validation in the EV industry.
Traditional EV battery abuse testing has focused predominantly on preventing catastrophic events such as thermal runaway, venting, fire, or explosion. This approach was inherently reactive: a battery either passed or failed based on whether it ignited under mechanical, electrical, or thermal abuse. However, with the rise of autonomous EV platforms, shared mobility, and stricter regulations on lifecycle sustainability, global standards are moving toward predictive diagnostics rather than simple fire-prevention metrics.
Fire prevention remains essential, yet it is no longer sufficient as the sole determinant of battery safety. Real-world failures often result not from immediate ignition but from progressive degradation mechanisms, such as lithium plating, separator shrinkage, or microstructural damage caused by cumulative stress. Standards such as UL 2580 (Clause 7.3 on mechanical shock) and UNECE R100 Annex 8E acknowledge that thermal runaway is only one failure mode. Increasingly, regulatory bodies require the monitoring of pre-runaway indicators, including internal resistance rise and abnormal gas generation, to assess long-term risk.
Fire-only testing also restricts innovation. Solid-state batteries, lithium-sulfur cells, and sodium-ion chemistries may not exhibit traditional ignition characteristics, thus requiring new diagnostic endpoints. Manufacturers that rely on outdated pass–fail models risk overlooking critical data related to thermal propagation dynamics, electrolyte decomposition onset, and electrode fatigue.
Predictive diagnostics incorporate real-time sensor data, multiphysics modeling, and failure probability simulation. Instead of viewing thermal runaway as a binary outcome, new approaches quantify the likelihood and rate of degradation leading to runaway. This shift enables automotive OEMs to establish condition-based maintenance schedules and implement early-warning protocols.
Key technological enablers include:
The predictive diagnostic trend is evident across major regulatory frameworks:
| Standard | Relevant Clause | Emerging Diagnostic Requirement |
|---|---|---|
| UL 2580 | Clause 5.2.4 | Requires impedance trend analysis over repeated abuse cycles |
| GB/T 31467.3-2015 | Section 8 | Mandates monitoring of vent gas chemistry to classify severity levels |
| UNECE R100 Annex 8F | Post-crash testing | Includes requirement for continuous monitoring of battery voltage and insulation resistance after mechanical impact |
These standards are moving from event-based outcomes (ignition/no ignition) toward behavioral insight models that assess how a battery approaches risky conditions.

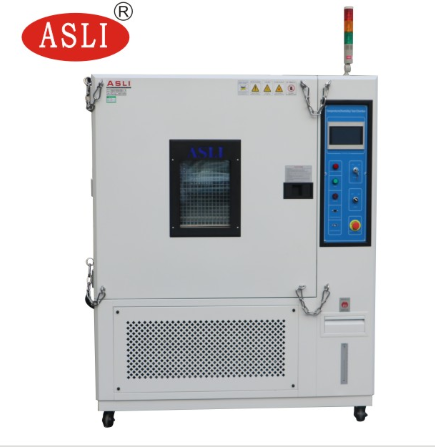

ASLI Explosion-proof Battery Test Chamber | Trusted Supplier for Battery Safety Testing
Regulatory agencies are implementing risk scoring models to quantify how close a battery is to a hazardous condition. Meanwhile, OEMs are leveraging this data to differentiate product reliability and extend warranty cycles. For example:

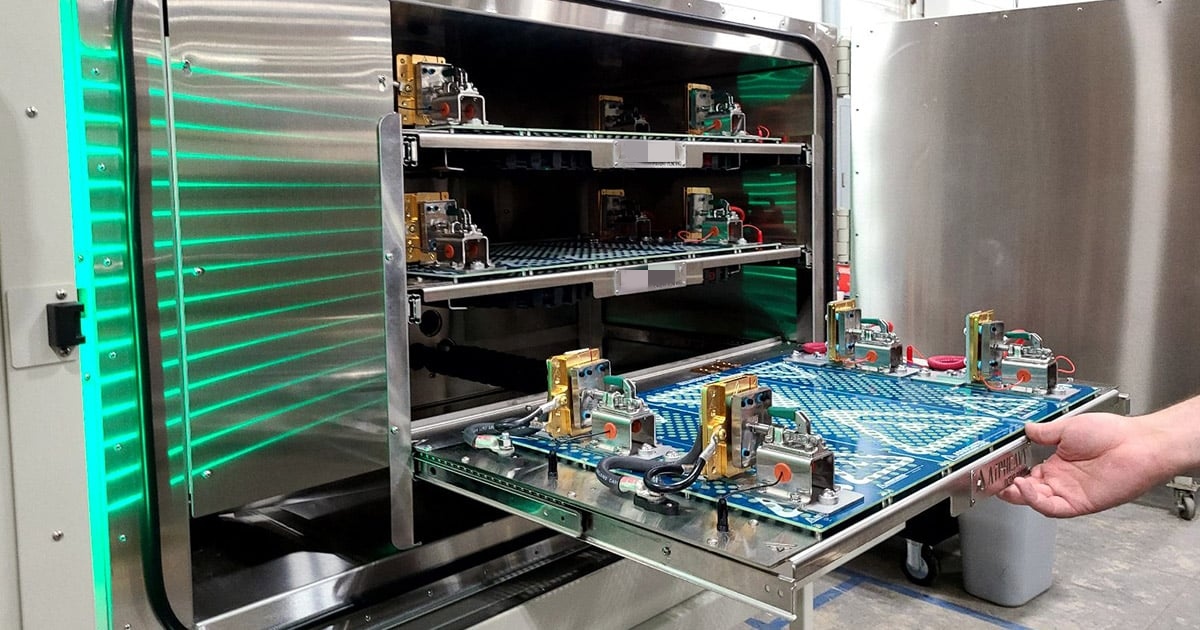

Test equipment must now support high-resolution data acquisition and programmable testing logic. Vibration, thermal cycling, and crush chambers must be capable of:
This drives demand for modular test chambers equipped with advanced sensors, machine-learning-ready interfaces, and cloud-based reporting systems.
According to data from the U.S. National Renewable Energy Laboratory (NREL) and China Automotive Technology and Research Center (CATARC), predictive diagnostics could reduce EV battery-related recall events by up to 35% by 2030. As nations mandate recycling and second-life use, predictive models will also be used to determine whether a spent battery is suitable for reuse in energy storage applications or should be decommissioned.
In summary, the shift from fire prevention toward predictive diagnostics signals a fundamental evolution in EV battery safety philosophy. Rather than asking, “Will the battery fail today?” the industry is now asking, “How soon will this battery approach failure, and can it be prevented proactively?” This transformation is redefining test chamber technologies, regulatory testing procedures, and global supply chain risk management strategies.
