In the electronics industry, corrosion resistance and enclosure sealing directly influence product reliability and long-term performance. Salt spray and water spray tests offer structured methods to evaluate these risks throughout design, qualification, and mass production phases.

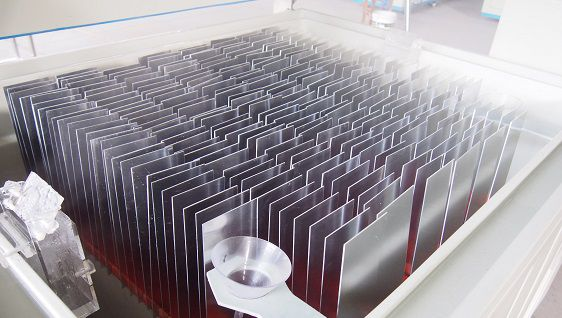

Salt Spray Chamber or Corrosion Example
During early prototyping, engineering teams focus on understanding how materials, coatings, and enclosure structures behave before committing to tooling.
Salt spray exposure based on ASTM B117 and ISO 9227 helps reveal plating porosity, galvanic mismatch, and uneven coating thickness. Small components such as screws, shielding parts, and connectors usually show the earliest corrosion symptoms.
A controlled setup such as an ASLI Salt Spray Test Chamber is commonly used for repeatable evaluation.
Water spray testing based on IEC 60529 (IPX3–IPX6) verifies gasket performance, adhesive bonding, and enclosure joint sealing. Leakage points often appear around ports, buttons, antenna windows, and microphone openings. Identifying weak areas at this stage prevents later design rework.
IP Water Spray Test Diagram
Once the structural design is frozen, environmental testing focuses on confirming whether the product maintains its performance under realistic stress.
Salt spray testing in this phase evaluates the corrosion stability of exposed parts, including charging contacts, SIM tray components, external frames, and decorative metal surfaces.
Outdoor or industrial electronics usually require longer exposure durations than indoor consumer devices.
Water spray tests check the stability of sealing after mechanical cycling, thermal aging, or daily-use load. Functional checks—charging, touchscreen performance, radio connectivity—before and after exposure provide deeper insight than appearance alone.
In some programs, humidity and temperature cycling are combined using an ASLI Temperature Humidity Chamber to simulate broader environmental influences.

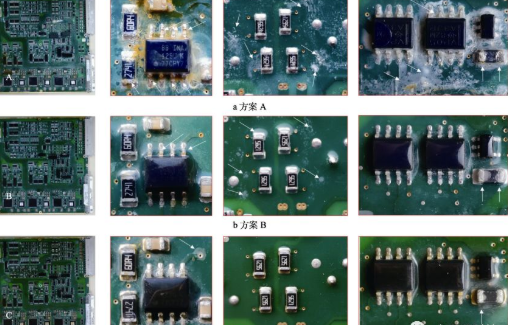

Before and after PCB corrosion
Mass production introduces variations in plating, adhesives, gasket thickness, and assembly alignment. Environmental testing verifies that production remains within the required reliability window.
Salt spray audits confirm stability in plating thickness and connector durability.
If failures occur, they usually indicate supplier drift or unstable surface treatment quality.
Water spray audits verify sealing reliability, especially for adhesive-based structures. Routine checks help prevent large-scale leakage issues during high-output periods.
For products shipped into humid, tropical, or coastal regions, these tests act as important preventive measures against corrosion-related failures.
Production Line Water Spray / IPX Testing
Salt spray and water spray methods provide quantifiable evidence on how materials, coatings, and enclosure details behave under controlled stress.
This data directly supports decisions involving material selection, structural optimization, cost control, and long-term reliability planning.
Teams use this information to refine materials, select surface treatments, and optimize sealing systems before mass production.
During manufacturing, the same tests reveal supplier drift or assembly inaccuracies that visual inspections rarely catch.
For outdoor electronics, IoT equipment, and devices used in humid environments, exposure test results from systems such as the ASLI Climate Test Chamber and ASLI Thermal Chamber give a clearer forecast of long-term field performance.
By integrating these methods into design verification, qualification programs, and production audits, manufacturers strengthen product consistency and reduce warranty returns.
The value is not in the test alone but in the engineering decisions supported by the data—fully aligning with the purpose described in the title: understanding how electronics withstand corrosion, moisture, and long-term environmental exposure.
